Matthew 6" truss telescope project.
Please, select [Next] at the bottom of each page to see all the pages.
Matthew, projet de telescope de 15 cm.
Choisisser [Next] (suivant), au bas de chaque page, afin de voir toutes les pages.

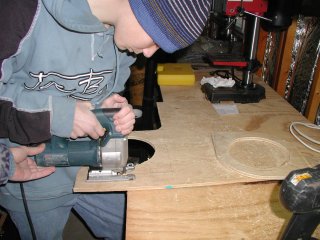

Cut of the two ring holders, used for joining the secondary mirror location to the truss.
Save the disk at the center of the ring, it will be used later for the mirror cell.

Decoupe des anneaux qui ont pour fonction de connecter le cylindre de la region du mirroir secondaire, au tubes metallique.
Conserver le disque decoupe au centre de l'anneau, il sera utilise plus tard, dans la construction de la cellule qui supporte le mirroir. 		picture, Matthew 6in truss telescope.
Drilling of the two holes for the steel pipe, using a "saw hole".

Percage des deux trous de passage des tubes. 		picture, Matthew 6in truss telescope.

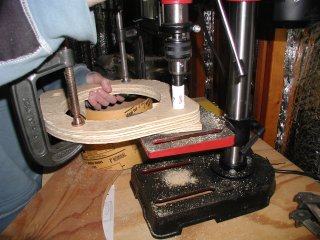

Sanding of the two rings.

Poncage des deux anneaux. 		picture, Matthew 6in truss telescope.
