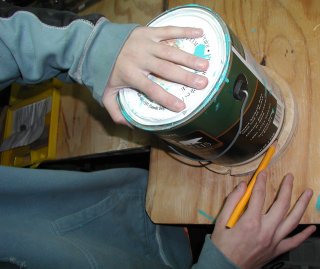

Take the two disk shaped plywood board left from the ring cut. Draw a circle a little bit bigger than the mirror diameter, we are working on having a 6" mirror, we draw a circle at about 6.75" (6 3/4"), which is the diameter of the paint can we happened to have on hand. Utiliser les deux disques recupere lors de la decoupe des anneaux. Dessiner un cercle un peu plus grand que le diametre du mirroir, nous preparons un telescope pour un mirroir de 15 cm mirroir. Nous avons dessine un cercle d'environ 17 cm de diametre, ce qui est le diametre du bidon de peinture que nous avions sous la main. |
![]() |

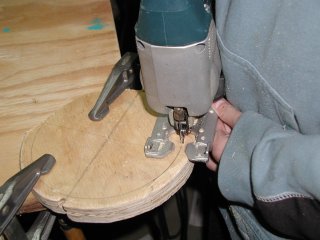

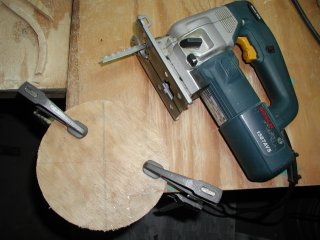

Put the to disk together, clamp it on a bench or table, start cutting slowly, to keep a nice shape. Prendre les deux disques, les serrer ensemble au bord d'une table ou etabli, puis, decouper lentement, ceci afin d'eviter des ebrechures du bois. |
![]() |
disks ready, for next step. Les disques sont prets pour l'etape suivante. |
![]() |

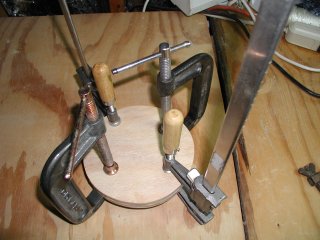

Glue the two disk together then clamp them. Coller les deux disque ensemble, puis serrer les bien. |
![]() |
